UltraTech Track Pans

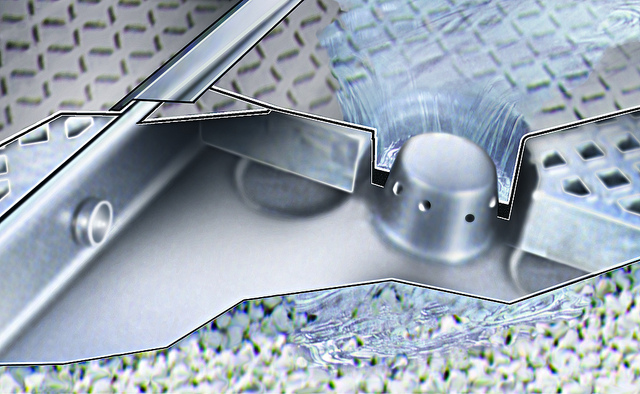

Ultra-Track Pans have been designed to provide railroad spill containment at industrial rail sidings and locomotive maintenance facilities.
Available in virtually any length, Ultra-Track Pans may be used to collect small spills and leaks OR to capture and channel off significant spills caused by defective equipment or a major overflow.
| ULTRATECH TRACK PANS | |
|---|---|

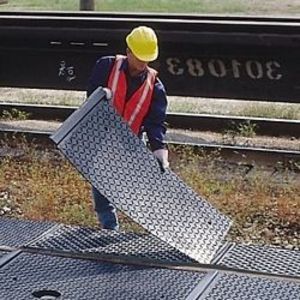

| Track Pans with Grates, No Covers | Track Pan Covers Only |
| Part# 9566 - Center Track Pan with Grates | Part# 9580 - Cover for Center Track Pan |
| Weight:112 lbs. (51 kg) | Weight: 24 lbs. (11 kg) |
| Containment Capacity: 18 gallons (69 L)* | Containment Capacity: N/A |

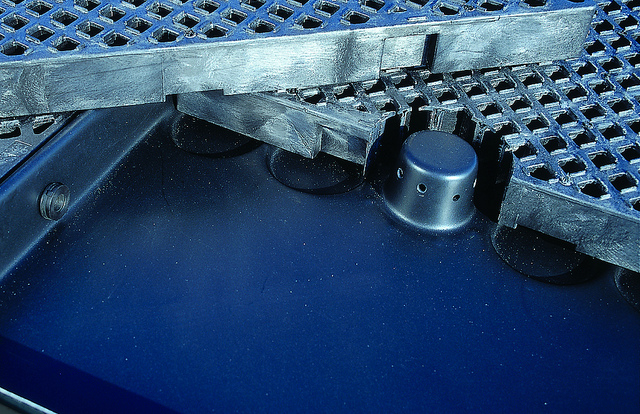

| Includes: 2 bulkhead fittings, 4 gaskets and 2 grates | |
| The total water flow rate through the insert in new condition is in excess of 500 gpm. The bypass rate is approximately 700 gpm. | |
| Part# 9576 - Side Track Pan with Grates | Part# 9581 - Cover for Side Track Pan |
| Dimensions: 53½" x 27½" x 6" (1359 mm x 699 mm x 153 mm) | Dimensions: 55" x 28 1/4" (1397 mm x 717 mm) |
| Weight:58 lbs. (26 kg) | Weight: 11 lbs. (5 kg) |
| Containment Capacity: 19 gallons (72 L)* | Containment Capacity: N/A |
| Includes: 1 bulkhead fitting, 2 gaskets and 1 grate | |
| *Because of wheel flange clearance the effective height of the Center Pans is shorter than the effective height of the Side Pans causing the Center Pans to have less capacity than the Side Pans. | |
| COMPLETE RAILROAD SPILL CONTAINMENT SYSTEMS | |
| 9-Foot Railroad Spill Containment Systems: | |
| Part# 9595 - Two (2) Center Pans, four (4) Side Pans. No covers | |
| Part# 9596 - Two (2) Center Pans with Covers, four (4) Side Pans with Covers | |
| 40-Foot Railroad Spill Containment Systems: | |
| Part# 9589 - Nine (9) Center Pans, eighteen (18) Side Pans. No covers | |
| Part# 9590 - Nine (9) Center Pans with Covers, eighteen (18) Side Pans with Covers | |
| 60-Foot Railroad Spill Containment Systems: | |
| Part# 9592 - Fourteen (14) Center Pans, twenty-eight (28) Side Pans. No covers | |
| Part# 9593 - Fourteen (14) Center Pans with Covers, twenty-eight (28) Side Pans with Covers | |
| Options | |
| Part# 9584 - Rebar Fasteners with Protective Caps (20-pack) | |
| Part# 9559 - 3" dia. Bulkhead Fitting (for below grade piping) | |
| Part# 9571 - Grate Only for Center Pan (Left) Part# 9571 - Grate Only for Center Pan (Right) | |
| Part# 9573 - Grate Only for Side Pan | |
- Prevent costly cleanup and regulatory fines from railcar spills and chemical spills.
- Modular Design - Center and Side Pans are 53.5" long; railroad spill containment areas can be easily assembled to any length desired
- All-polyethylene Construction - Rugged Track Pans withstand harsh chemicals and are designed to function in temperatures ranging from -40°F to +140°F
- Sealed System - Polyethylene gaskets keep spills from falling between the rails and Pans.
- Low Maintenance - unlike carbon steel track pans, Ultra-Track Pans will not rust or corrode. Polyethylene resin is treated with a UV inhibitor, resists degrading effects of the sun.
Many options / versions available. Please contact our office 1.888.548.3800 or sales@spillsupply.com
Please contact us for pricing on UltraTech Track Pans.
